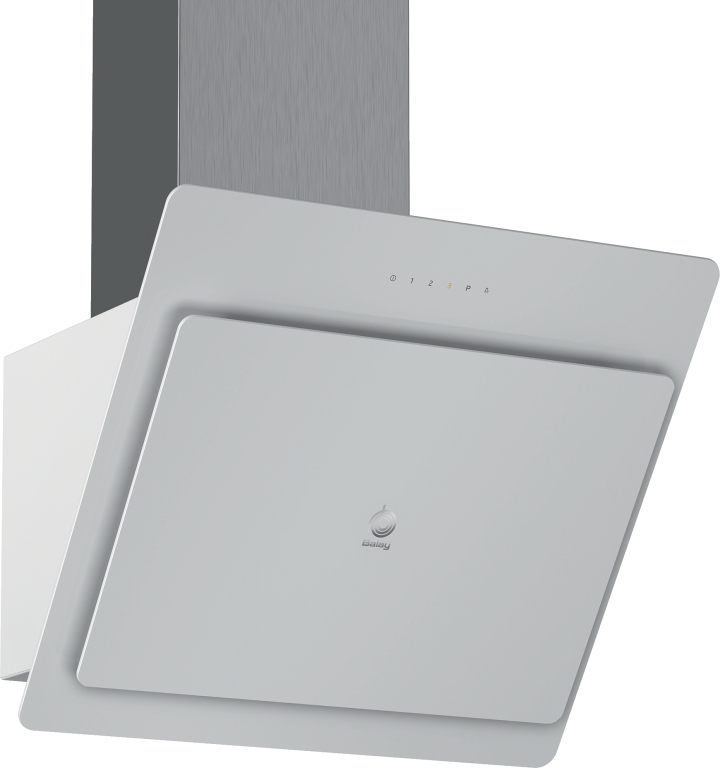

3BC567GB, Campana decorativa de pared inclinada

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE 3BC567GB
• USP_MAIN Campana de pared inclinada de la Serie Cristal: libertad de movimientos en la zona de cocción y elegancia en toda la cocina.
• ART_NUM 3BC567GB
• COL_BODY_HOODS Blanco
• MAT_BODY Cristal, Esmaltada
• COL_CHIMNEY noData
• MAT_CHIMNEY Acero inoxidable
• TYPOLOGY noData
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Montaje en pared
• CONTROL_SETTING Indicadores luminosos LED;Touch control
• FRONT_PANEL_OPTIONS noData
• MOTOR_LOCATION Motor integrado en el cuerpo de la campana
• OPERATING_MODE Convertible
• CONNECTION 263
• CURRENT 10
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 130.0
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 323
• HEIGHT 323
• WIDTH 590
• DEPTH 499
• HEIGHT_PACKED 690
• WIDTH_PACKED 740
• DEPTH_PACKED 1040
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN noData
• WIDTH_NICHE_SIZE_MAX noData
• DEPTH_NICHE_SIZE noData
• WEIGHT_NET 21.5
• WEIGHT_GROSS 30.3
• AIR_EXHAUST_AVAILABLE noData
• CHIMNEY_HEIGHT_EXHAUST_MAX 800
• CHIMNEY_HEIGHT_EXHAUST_MIN 530
• CHIMNEY_HEIGHT_RECIRC_MAX 860
• CHIMNEY_HEIGHT_RECIRC_MIN 590
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 B
• ENERGY_ANNUAL 56.6
• FLUID_DYNAMIC_EFFICIENCY 27.5
• FLUID_DYNAMIC_CLASS B
• LIGHT_EFFICIENCY 26.3
• LIGHT_CLASS B
• GREASE_FILTER_EFFICIENCY 80.6
• GREASE_FILTER_CLASS C
• AIR_FLOW_MAX 416
• AIR_FLOW_MIN 254
• AIR_FLOW_BOOST 700.0
• SOUND_POWER_MAX 58
• SOUND_POWER_MIN 48
• SOUND_POWER_BOOST 67
• POWER_CONS_STANDBY 0.23
• POWER_OFF_MODE_2010 noData
• NOISE 58
• NOISE_BOOST 67
• ECO_LABEL
• MANUAL_CONTROL_DEVICES touch control
• AUTOMATIC_CONTROL_DEVICES noData
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 260
• MAX_OUTPUT_EXTRACTION 416
• BOOST_OUTPUT_EXTRACTION 700
• MAX_OUTPUT_RECIRCULATION 409
• BOOST_OUTPUT_RECIRCULATION 615.0
• LIGHT_CNT_TYPE Encendido/Apagado
• LIGHTS_NUMBER 2
• LAMPS_TOTAL_POWER noData
• LUMINANCE_TOTAL 100
• GREASE_FILTER_MAT Aluminio lavable
• AIR_OUTLET_DIAMETER 120 / 150
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP Si
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES
• SPEED_SETTINGS noData
• LAMPS_TYPE LED
• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA01743318_STP_3BC567GB_1181759_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02429605_3BC567GN_DecorativeHoods_Balay_PGA4_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02429614_3BC567GB_DecorativeHoods_Balay_PGA1_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02429586_3BC567GN_DecorativeHoods_Balay_PGA4_gross_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02429618_3BC567GB_DecorativeHoods_Balay_PGA2_def.jpg
• ADD_IMAGE5_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02429620_3BC567GB_Decorative_Hoods_Balay_PGA3_def.jpg
• ADD_IMAGE6_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02333687_3BC567GB_Schraegesse_Balay_STP_def.jpg
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Consigue más espacio libre con la disposición inclinada de la campana.
• USP_2 Innovador control táctil sobre cristal, diseño moderno y fácil limpieza.
• USP_3 Filtros de diseño tradicional de aluminio multicapa, de gran eficiencia y lavables en lavavajillas.
• USP_4 Filtros de aspiración perimetral: estéticos, eficaces reteniendo grasas y además… lavables en lavavajillas.
• USP_5 Adaptable a cada espacio y cocina. Posibilidad de instalación en recirculación.
