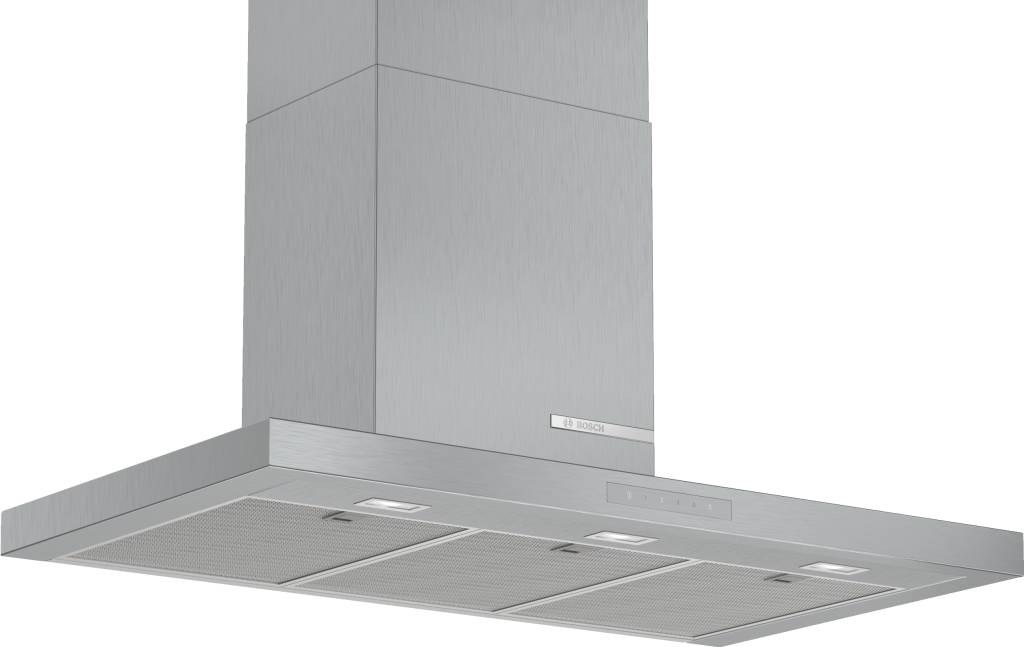

DWB97CM50, Campana decorativa de pared

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE DWB97CM50
• USP_MAIN Campana de pared: libertad para el diseño de la cocina.
• ART_NUM DWB97CM50
• COL_BODY_HOODS Acero inoxidable
• MAT_BODY noData
• COL_CHIMNEY noData
• MAT_CHIMNEY Acero inoxidable
• TYPOLOGY noData
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Montaje en pared
• CONTROL_SETTING Indicadores luminosos LED;Touch control
• FRONT_PANEL_OPTIONS noData
• MOTOR_LOCATION Motor integrado en la chimenea de la campana
• OPERATING_MODE Convertible
• CONNECTION 145
• CURRENT 10
• VOLTAGE 220-240
• FREQUENCY 60; 50
• CERTIFICATES
• CORD_LGTH 130.0
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 46
• HEIGHT 46
• WIDTH 898
• DEPTH 500
• HEIGHT_PACKED 585
• WIDTH_PACKED 650
• DEPTH_PACKED 970
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN noData
• WIDTH_NICHE_SIZE_MAX noData
• DEPTH_NICHE_SIZE noData
• WEIGHT_NET 16.8
• WEIGHT_GROSS 23.9
• AIR_EXHAUST_AVAILABLE noData
• CHIMNEY_HEIGHT_EXHAUST_MAX 908
• CHIMNEY_HEIGHT_EXHAUST_MIN 582
• CHIMNEY_HEIGHT_RECIRC_MAX 1018
• CHIMNEY_HEIGHT_RECIRC_MIN 568
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 A+
• ENERGY_ANNUAL 29.4
• FLUID_DYNAMIC_EFFICIENCY 32.5
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 64.1
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 88.5
• GREASE_FILTER_CLASS B
• AIR_FLOW_MAX 440
• AIR_FLOW_MIN 293
• AIR_FLOW_BOOST 722.0
• SOUND_POWER_MAX 55
• SOUND_POWER_MIN 45
• SOUND_POWER_BOOST 66
• POWER_CONS_STANDBY 0.22
• POWER_OFF_MODE_2010 noData
• NOISE 55
• NOISE_BOOST 66
• ECO_LABEL
• MANUAL_CONTROL_DEVICES touch control
• AUTOMATIC_CONTROL_DEVICES noData
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 140
• MAX_OUTPUT_EXTRACTION 440
• BOOST_OUTPUT_EXTRACTION 722
• MAX_OUTPUT_RECIRCULATION 343
• BOOST_OUTPUT_RECIRCULATION 442
• LIGHT_CNT_TYPE Encendido/Apagado
• LIGHTS_NUMBER 3
• LAMPS_TOTAL_POWER noData
• LUMINANCE_TOTAL 359
• GREASE_FILTER_MAT Aluminio lavable
• AIR_OUTLET_DIAMETER 150 / 120
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP Si
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES DHZ1223,DHZ1233,DWZ0XX0J5,DWZ1CX1I6,DWZ2CB1I4,DWZ2CX5C6,DZZ0XX0P0,DZZ1XX1B6
• SPEED_SETTINGS noData
• LAMPS_TYPE LED
• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02612104_DWB97CM50_ChimneyHood_Bosch_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02677235_DWB97CM50_ChimneyHood_Bosch_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02683911_DWB97CM50_ChimneyHood_Bosch_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02690897_DWB97CM50_ChimneyHood_Bosch_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02696281_StandardMeshfilter_Bosch_PGA4_def.jpg
• ADD_IMAGE5_ID
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Motor EcoSilence™: Motor eficiente, silencioso, robusto y duradero.
• USP_2 Campana extrasilenciosa: máximo rendimiento con mínimo ruido.
• USP_3 Electrónica TouchSelect: controla los ajustes de la campana con un solo dedo.
• USP_4 Potencia intensiva: elimina de manera rápida y efectiva los olores de la cocina.
• USP_5 Interior blindado: limpieza fácil y segura.
