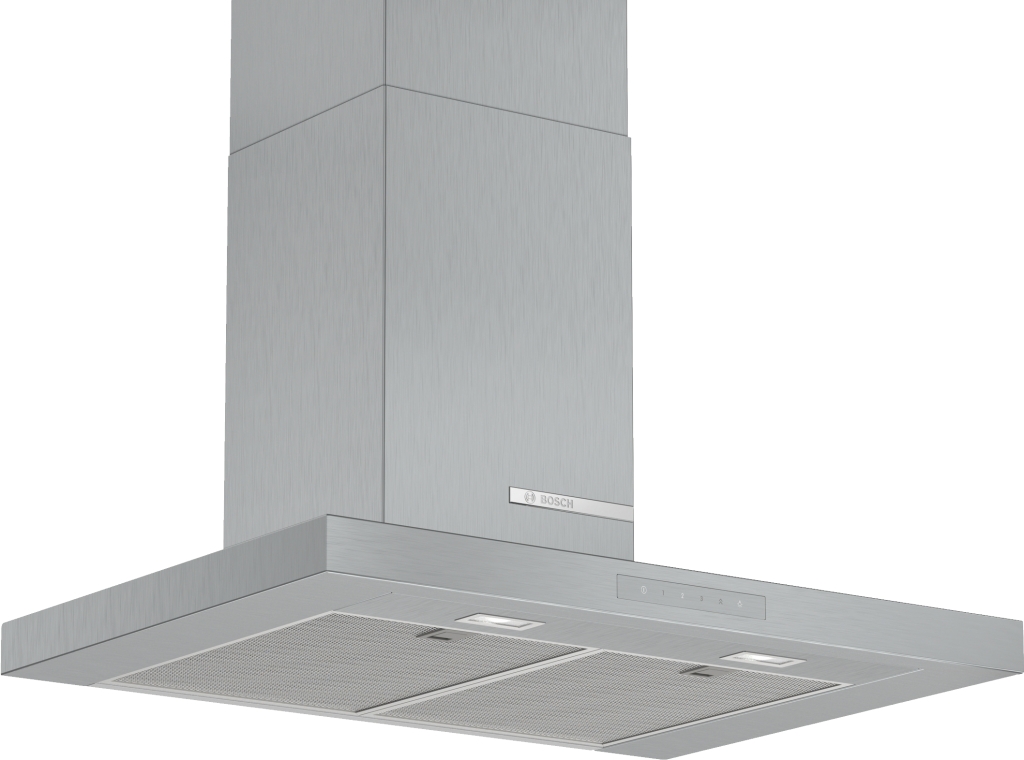

DWB77CM50, Campana decorativa de pared

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE DWB77CM50
• USP_MAIN Campana de pared: libertad para el diseño de la cocina.
• ART_NUM DWB77CM50
• COL_BODY_HOODS Acero inoxidable
• MAT_BODY noData
• COL_CHIMNEY noData
• MAT_CHIMNEY Acero inoxidable
• TYPOLOGY noData
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Montaje en pared
• CONTROL_SETTING Indicadores luminosos LED;Touch control
• FRONT_PANEL_OPTIONS noData
• MOTOR_LOCATION Motor integrado en la chimenea de la campana
• OPERATING_MODE Convertible
• CONNECTION 143
• CURRENT 10
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 130.0
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 46
• HEIGHT 46
• WIDTH 698
• DEPTH 500
• HEIGHT_PACKED 585
• WIDTH_PACKED 650
• DEPTH_PACKED 970
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN noData
• WIDTH_NICHE_SIZE_MAX noData
• DEPTH_NICHE_SIZE noData
• WEIGHT_NET 14.3
• WEIGHT_GROSS 21.3
• AIR_EXHAUST_AVAILABLE noData
• CHIMNEY_HEIGHT_EXHAUST_MAX 908
• CHIMNEY_HEIGHT_EXHAUST_MIN 582
• CHIMNEY_HEIGHT_RECIRC_MAX 1018
• CHIMNEY_HEIGHT_RECIRC_MIN 568
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 A
• ENERGY_ANNUAL 36.1
• FLUID_DYNAMIC_EFFICIENCY 29.1
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 54.5
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 88.3
• GREASE_FILTER_CLASS B
• AIR_FLOW_MAX 414
• AIR_FLOW_MIN 259
• AIR_FLOW_BOOST 671.0
• SOUND_POWER_MAX 60
• SOUND_POWER_MIN 47
• SOUND_POWER_BOOST 70
• POWER_CONS_STANDBY 0.22
• POWER_OFF_MODE_2010 noData
• NOISE 60
• NOISE_BOOST 70
• ECO_LABEL
• MANUAL_CONTROL_DEVICES touch control
• AUTOMATIC_CONTROL_DEVICES noData
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 140
• MAX_OUTPUT_EXTRACTION 414
• BOOST_OUTPUT_EXTRACTION 671
• MAX_OUTPUT_RECIRCULATION 330
• BOOST_OUTPUT_RECIRCULATION 409
• LIGHT_CNT_TYPE Encendido/Apagado
• LIGHTS_NUMBER 2
• LAMPS_TOTAL_POWER noData
• LUMINANCE_TOTAL 267
• GREASE_FILTER_MAT Aluminio lavable
• AIR_OUTLET_DIAMETER 120 / 150
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP Si
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES DHZ1225,DHZ1235,DWZ0XX0J5,DWZ1CB1I4,DWZ1CX1I6,DWZ1FX5C6,DZZ0XX0P0,DZZ1XX1B6
• SPEED_SETTINGS noData
• LAMPS_TYPE LED
• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02612101_DWB77CM50_ChimneyHood_Bosch_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02677234_DWB67CM50_ChimneyHood_Bosch_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02683910_DWB77CM50_ChimneyHood_Bosch_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02690896_DWB77CM50_ChimneyHood_Bosch_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02696281_StandardMeshfilter_Bosch_PGA4_def.jpg
• ADD_IMAGE5_ID
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Motor EcoSilence™: Motor eficiente, silencioso, robusto y duradero.
• USP_2 Campana ultrasilenciosa: máximo rendimiento, con mínimo ruido.
• USP_3 Electrónica TouchSelect: controla los ajustes de la campana con un solo dedo.
• USP_4 Interior blindado: limpieza fácil y segura.
• USP_5 Potencia intensiva: elimina de manera rápida y efectiva los olores de la cocina.
