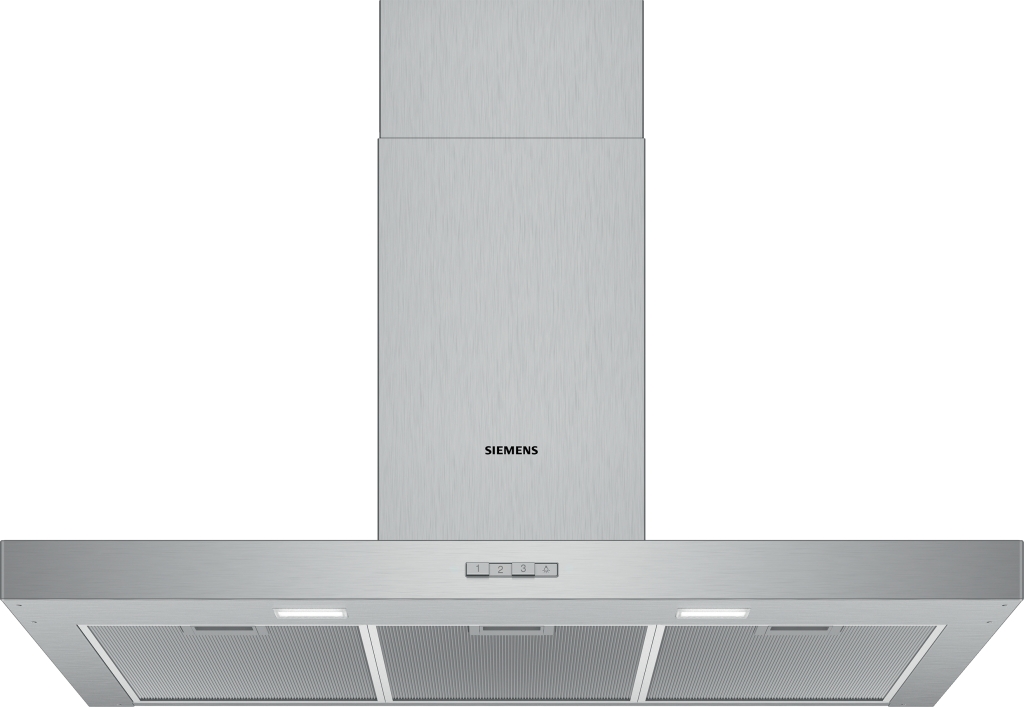

LC96BBC50, Campana decorativa de pared

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE LC96BBC50
• USP_MAIN Campana decorativa de pared con gran capacidad de extracción y cuidado diseño.
• ART_NUM LC96BBC50
• COL_BODY_HOODS Acero inoxidable
• MAT_BODY Acero inoxidable
• COL_CHIMNEY
• MAT_CHIMNEY Acero inoxidable
• TYPOLOGY
• CONTROL_TYPE Mecánico
• CONSTR_TYPE Integrable
• INST_TYPE Montaje en pared
• CONTROL_SETTING Pulsador
• FRONT_PANEL_OPTIONS
• MOTOR_LOCATION Motor integrado en la chimenea de la campana
• OPERATING_MODE Convertible
• CONNECTION 220
• CURRENT 10
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 130.0
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 53
• HEIGHT 53
• WIDTH 900
• DEPTH 500
• HEIGHT_PACKED 490
• WIDTH_PACKED 650
• DEPTH_PACKED 1030
• HEIGHT_NICHE_SIZE_MIN
• HEIGHT_NICHE_SIZE_MAX
• WIDTH_NICHE_SIZE_MIN
• WIDTH_NICHE_SIZE_MAX
• DEPTH_NICHE_SIZE
• WEIGHT_NET 13.0
• WEIGHT_GROSS 18.3
• AIR_EXHAUST_AVAILABLE
• CHIMNEY_HEIGHT_EXHAUST_MAX 912
• CHIMNEY_HEIGHT_EXHAUST_MIN 583
• CHIMNEY_HEIGHT_RECIRC_MAX 1022
• CHIMNEY_HEIGHT_RECIRC_MIN 853
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 B
• ENERGY_ANNUAL 47.4
• FLUID_DYNAMIC_EFFICIENCY 28.9
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 32.5
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 85.4
• GREASE_FILTER_CLASS B
• AIR_FLOW_MAX 619
• AIR_FLOW_MIN 248.9
• AIR_FLOW_BOOST
• SOUND_POWER_MAX 70
• SOUND_POWER_MIN 49
• SOUND_POWER_BOOST
• POWER_CONS_STANDBY
• POWER_OFF_MODE_2010 0.00
• NOISE 70
• NOISE_BOOST
• ECO_LABEL
• MANUAL_CONTROL_DEVICES Push buttons
• AUTOMATIC_CONTROL_DEVICES
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 215
• MAX_OUTPUT_EXTRACTION 619
• BOOST_OUTPUT_EXTRACTION
• MAX_OUTPUT_RECIRCULATION 422
• BOOST_OUTPUT_RECIRCULATION
• LIGHT_CNT_TYPE Encendido/Apagado
• LIGHTS_NUMBER 2
• LAMPS_TOTAL_POWER
• LUMINANCE_TOTAL 91
• GREASE_FILTER_MAT Aluminio lavable
• AIR_OUTLET_DIAMETER 120 / 150
• GREASE_FILTER_TYPE
• NO_RETURN_FLAP Si
• ODOUR_FILTER No
• ACCESSORIES_INCL
• ACCESSORIES LZ00XXP00,LZ10FXJ00,LZ11DXI14,LZ11DXI16,LZ11FXC56,LZ12250,LZ12350
• SPEED_SETTINGS 3
• LAMPS_TYPE LED
• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02004675_LC94BBC50_ChimneyHood_Siemens_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02246870_LC94BBC50_ChimneyHood_Siemens_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02248138_LC94BBC50_ChimneyHood_Siemens_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02244550_LC94BBC50_ChimneyHood_Siemens_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02249874_LC94PBC50B_ChimneyHood_Siemens_PGA4_def.jpg
• ADD_IMAGE5_ID
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Iluminación LED: perfecta y eficiente visibilidad cuando se está cocinando.
• USP_2
• USP_3
• USP_4
• USP_5
• USP_6
• USP_7
• USP_8
• USP_10
• USP_9
• USP_11
• USP_12
• USP_13
• USP_14
• USP_15
• USP_16
• USP_17
• USP_18
• USP_19
• USP_20
